Clean wire
A standard product in our offer – general-purpose wires with a smooth and clean surface. Used where there are no specific requirements regarding surface cleanliness, such as for powder coating, wet painting, electroplating, and hot-dip galvanizing.
Check out the specifications
Technical data
| WIRE DIAMETER: | 1,20 – 12,00 mm |
| DIAMETER TOLERANCE: | +/- 0,04 mm |
| TENSILE STRENGTH: | 480 – 800 MPa |
| WEIGHT RANGE: | 450 – 1400 kg (coil) 50 – 300 kg (small roll) |
| UNWINDING DIRECTION: | counterclockwise |
| WIRE CONFECTION: | coil, precision layering coil, small roll |
| STANDARD STEEL GRADES: | SAE 1008-U, SAE 1006-U, C4D1+B, C9D, C2D1, SAE 1010-1P, S235JR |
Product Variants
We offer all wires in three different winding variants – each adapted to different customer needs. They differ in the winding method, dimensions and availability for different diameters.
PRECISION LAYERING COIL
Dimensions
D1: 600 mm
D2: 700 – 900 mm
H: 600 mm
Available for diameters
5,50 – 12,00 mm
Weight
450 – 1400 kg
REGULAR COIL
Dimensions
D1: 500 mm
D2: 630 – 900 mm
H: 500 / 630 mm
Available for diameters
2,00 – 6,00 mm
Weight
450 – 1400 kg
SMALL ROLL
Dimensions
D1: 450 – 550 mm
D2: 650 – 800 mm
H: 100 – 300 mm
Available for diameters
1,20 – 6,00 mm
Weight
50 – 300 kg
(depending on the wire diameter)
Need more information?
Please, use the contact form, or contact directly the person who has more detailed information:
Adam Borkowski
+48 783 54 54 54
adam@drutpol.pl

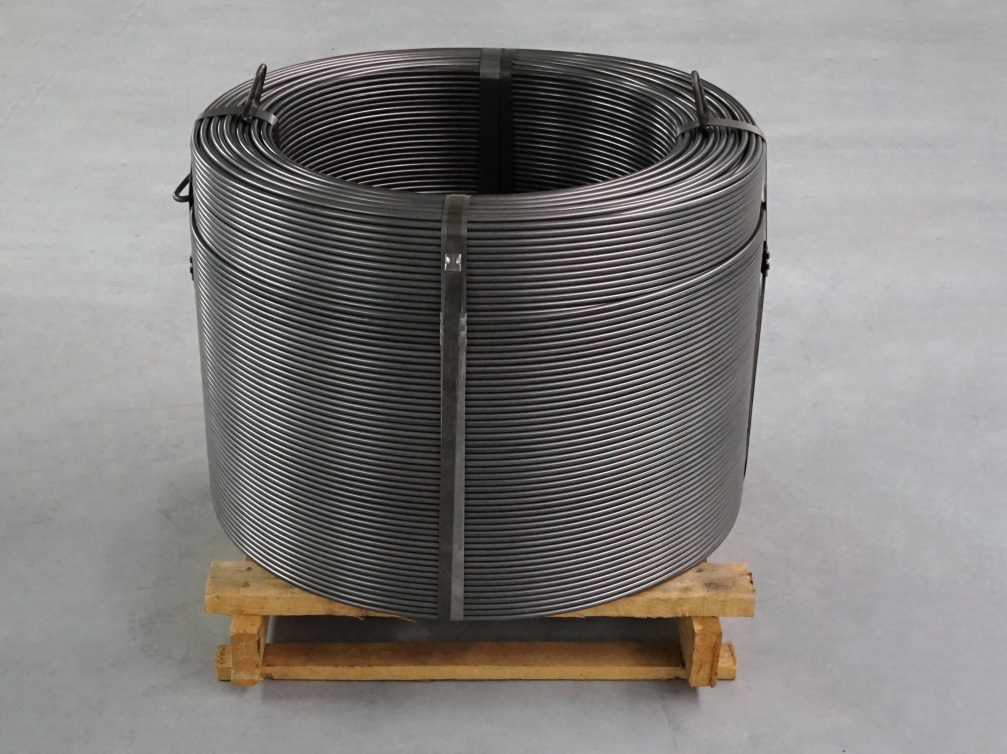

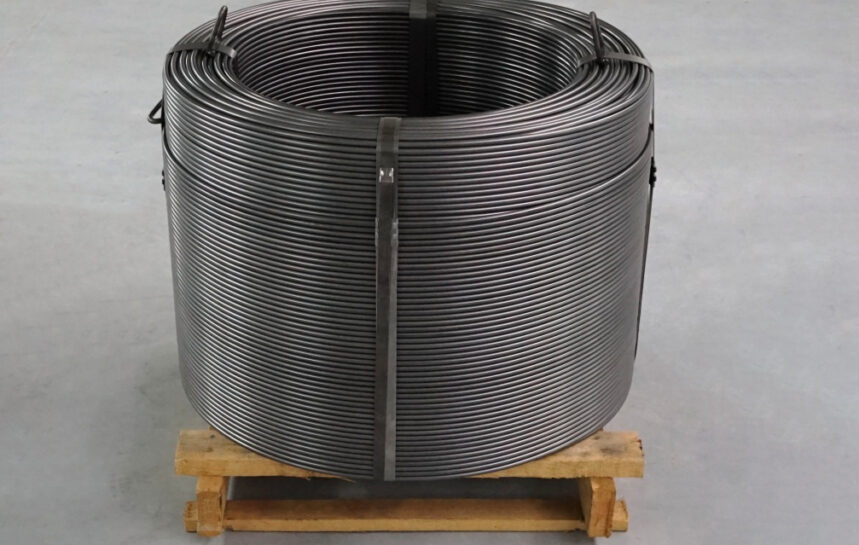

Product photos
